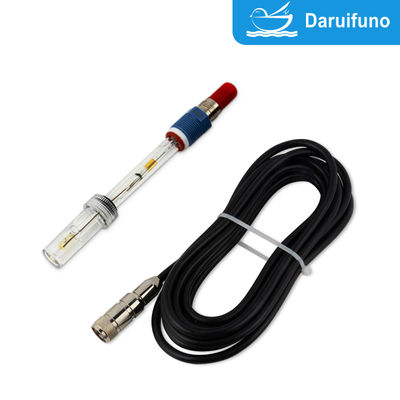

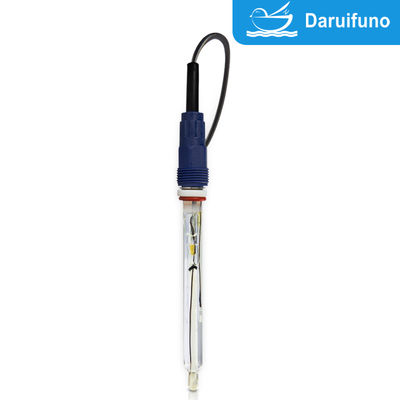

High Temperature Resistant 135℃ Analog PH Electrode For Pure Water >5μS/Cm

This robust PH sensor ASP121E boasts a broad measuring range of 0 to 14 pH, making it highly versatile. It features a low-impedance cylindrical glass membrane for rapid and stable readings. The sophisticated Ag/AgCl reference system, with a double salt bridge and KCl gel, effectively and extends the sensor's lifespan, even where traditional single-junction electrodes might fail.

Engineered for Durability and Precision
The electrode is constructed from durable glass with a unique dot-shaped ceramic frit, offering superior resistance to chemical attack.

Operating Pressure & Temperature:

Standard Environments: Operates continuously from 0°C to 80°C with pressures up to 6 bar. For high-temperature applications, it can withstand up to 100°C for less than 60 minutes with pressures up to 3 bar.

Customizable High-Temp Version: Available for continuous use up to 100°C or short-term exposure up to 135°C (under 60 minutes). This model has been rigorously tested to endure more than 40 high-temperature cycles in a clean water environment.

Key Technical Specifications:

Slope Percentage: Greater than 95% for exceptional accuracy and sensitivity.

Zero Point (E0): ±0.25 pH.

Temperature Compensation: Highly customizable with options for PT100, PT1000, or NTC10K sensors to ensure precise pH readings across

varying temperatures.

Sample Flow Rate: Optimized for flow rates between 0.001 m/s and 0.5 m/s.

Dimensions: Standard dimensions are 12mm in diameter and 120mm in length, with customizable options available.

Installation: Features a standard PG13.5 mounting thread for simple integration into existing systems.

Leads: Integral or split leads provide flexible installation options to suit your needs.

This electrode is particularly well-suited for pure water >5μS/cm applications ,it is the definitive choice for reliable and accurate pH measurement.

• Large capacity reference for extended service life
• Optional cleaning connector for underwater maintenance
• Available with PTFE protective cover and self-cleaning interface
• Self-cleaning function enhances stability, accuracy, and reliability while reducing maintenance costs
• Suit for Pure Water >5μS/Cm

The ASP121E glass pH sensor offers ultimate flexibility with custom mounting accessories for pure water environment:

• Sidewall Mounting: Ideal for large tanks and vessels
• Top Flange Mounting: Perfect for sealed reactors
• Pipe/Flow Cell Mounting: For in-line measurements
• Submersible Mounting: For open tanks and channels
• Manual Retractable Holder: Enables maintenance without process shutdown

The optional PTFE (Teflon) sheath. Featuring 3/4" NPT threads for easy attachment to mounting accessories, it ensures seamless integration across various applications.
